Radio Navigation Beacons
Everything you always wanted to know about the various popular radio navigation systems available in aircraft.
While researching the various types of radio navigation kit for an upcoming video, I thought it might be interesting to share some of the research with the community. If you’ve ever wondered exactly what DME, VORs, TACAN, VORTAC, and ILS actually do - how they work - wonder no more.
DME (Distance Measuring Equipment)
DME stands for “Distance Measuring Equipment” and refers to a system that measures the distance between an aircraft and a ground station.
Here's how it works:
Aircraft Interrogation: The aircraft's DME equipment transmits a pair of radio pulses on a specific frequency to the ground station.
Ground Station Response: The ground station receives the pulses and transmits them back to the aircraft, adding a specific delay.
Distance Calculation: The aircraft's DME equipment measures the time difference between the pulses it sent and the ones it received back. By knowing the speed of radio waves and accounting for the delay, the system calculates the distance to the ground station.
DME provides essential information for pilots, enabling them to:
Estimate arrival times: Knowing the distance to a waypoint or destination allows pilots to calculate their estimated arrival time (ETA).
Monitor progress on approaches: During instrument approaches, DME helps pilots track their progress as they get closer to the runway.
Optimize altitude and speed: With distance information, pilots can adjust their altitude and speed to maintain efficient and safe flight paths.
DME typically operates in the VHF (Very High Frequency) band and often works alongside VOR (provides directional information) to offer pilots a complete positioning system. Additionally, DME can be integrated with TACAN in military applications.
NDB (Non Directional Beacon)
An NDB, or non-directional beacon, is a ground-based radio transmitter used in aviation and marine navigation. Unlike other navigation aids that provide directional information, NDBs transmit a continuous signal in all directions. This signal can be picked up by an Automatic Direction Finder (ADF) on board an aircraft or vessel, allowing the pilot or captain to determine their bearing relative to the NDB.
Here are some key points about NDBs:
They operate in the medium frequency (MF) or low frequency (LF) bands.
They transmit a continuous carrier signal that is modulated with a Morse code identifier, typically 1-3 letters.
The ADF on board the aircraft or vessel uses the signal to determine the bearing to the NDB. This bearing can then be used to plot the aircraft or vessel's position on a chart or navigation system.
NDBs are often used as markers or "locators" for an instrument landing system (ILS) approach or standard approach. They may designate the starting area for an ILS approach or a path to follow for a standard terminal arrival route (STAR).
NDBs are relatively simple and inexpensive to install and operate, making them a popular choice for navigation in many parts of the world. However, they are not as accurate as some other navigation aids, such as GPS, and they can be susceptible to interference from terrain and atmospheric conditions.
NDBs are still used in many parts of the world, especially in remote areas where other navigation aids are not available. However, their use is gradually declining as GPS and other more accurate navigation systems become more widely available.

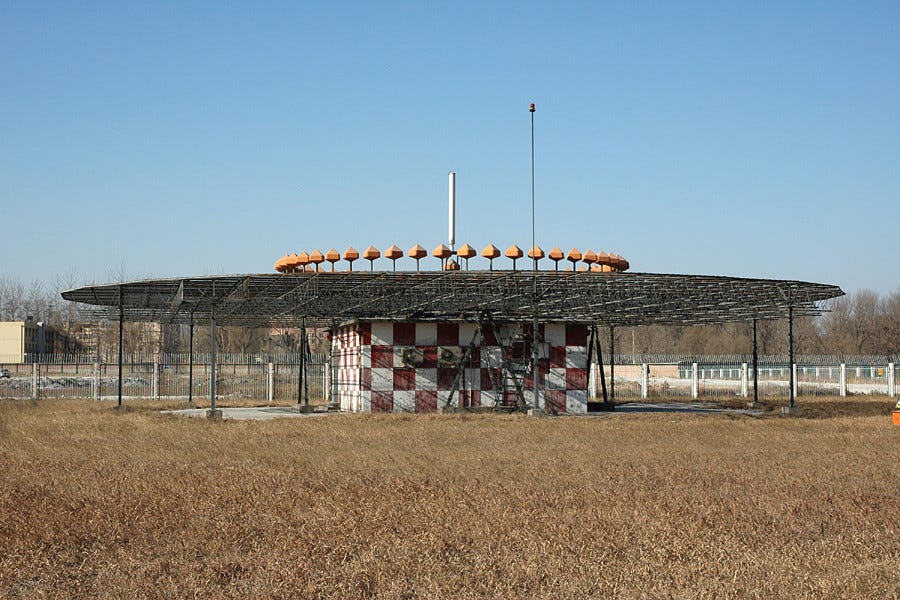

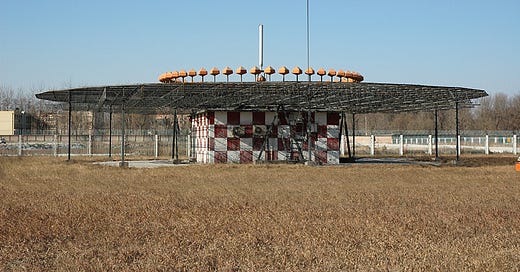

VOR (Very High Frequency Omni-Directional Range)
A VOR, or “Very High Frequency Omni-Directional Range”, is another type of ground-based navigation aid for aircraft, but unlike NDBs, it offers much more precise directional information.
Here's how it works:
Imagine a lighthouse, but instead of light, it sends out radio waves. These waves rotate 360 degrees 30 times per second, like a spinning fan. But it's not just sending out one signal, it's sending two: a main signal and a reference signal. The reference signal is timed to be in sync with the main signal only when it points north.
Onboard the aircraft, a receiver picks up these signals and measures the tiny "time gap" between them. This time gap tells the pilot their bearing (direction) relative to the VOR station, just like the angle between the lighthouse beam and the observer tells you where you are relative to the lighthouse.
VORs provide several key benefits:
Accuracy: They're much more accurate than NDBs, with deviations typically measured in degrees, not tens of degrees.
Flexibility: Pilots can choose any direction (radial) from the VOR to fly on, not just directly towards or away from it. This allows for flexible route planning and instrument approaches.
Voice communications: Many VORs transmit voice identification and information, like weather updates, further enhancing situational awareness for pilots.
Like NDBs, VORs are also used as markers for approach procedures, but due to their accuracy, they often play a central role in more complex instrument approaches. However, with the rise of GPS technology, the use of VORs is gradually declining, especially in commercial aviation.
Some additional facts about VORs:
They operate in the VHF (Very High Frequency) band, providing better range and less interference than NDBs.
They often come paired with Distance Measuring Equipment (DME), which tells the aircraft its distance from the VOR, allowing for full position determination.
A special instrument called a Course Deviation Indicator (CDI) displays the aircraft's deviation from a chosen radial, helping pilots stay on course.
TACAN (Tactical Air Navigation)
A TACAN, or “Tactical Air Navigation” system, is a military navigation system that provides both bearing and distance information to aircraft from a ground or ship-borne station. It's essentially a more advanced and precise version of the VOR/DME system used in civilian aviation.
Here's a breakdown of how TACAN works:
Ground Station: The TACAN ground station transmits two ultra-high frequency (UHF) radio signals: a rotating pulse signal and a reference signal. These signals sweep 360 degrees around the station 15 times per second.
Aircraft Equipment: The aircraft's TACAN receiver picks up these signals and measures the time difference between them. This time difference corresponds to the aircraft's bearing relative to the station.
Distance Measurement: Additionally, the TACAN system often incorporates Distance Measuring Equipment (DME). The aircraft transmits a pulse signal to the ground station, and the station transmits a reply signal back. The time it takes for the round trip determines the distance between the aircraft and the station.
TACAN offers several advantages over VOR/DME:
Higher Accuracy: TACAN is significantly more accurate than VOR/DME, especially at lower altitudes and in poor weather conditions.
Anti-Jamming: TACAN is less susceptible to jamming compared to other navigation systems.
Security: TACAN uses a more complex signal structure, making it more difficult to spoof or interfere with.
However, TACAN also has some drawbacks:
Limited Availability: TACAN stations are primarily found in military areas and are not as widespread as VOR/DME or GPS.
Equipment Cost: TACAN equipment is more expensive and complex than VOR/DME, making it less accessible to some civilian users.
Overall, TACAN remains a critical navigation system for military aircraft, providing highly accurate and reliable positioning data even in challenging environments.
VORTAC (VOR and TACAN)
VORTAC is a combination of both VOR (VHF Omni-Directional Range) and TACAN (Tactical Air Navigation). It essentially offers the best of both worlds, providing both bearing and distance information to aircraft from a single ground or ship-borne station.
Here's how it works:
VHF Signals: Like a VOR, the VORTAC station transmits rotating VHF signals, allowing aircraft to determine their bearing relative to the station.
UHF Signals: Additionally, the VORTAC station transmits UHF pulses using the TACAN system. The aircraft measures the time difference between these pulses to determine its bearing as well.
Distance Measurement: VORTAC typically incorporates DME (Distance Measuring Equipment) functionality. The aircraft transmits a pulse signal, the station replies, and the round-trip time determines the distance from the station.
Using both VOR and TACAN systems for bearing provides redundancy and enhances accuracy, especially in challenging environments. Combining this with DME for distance gives pilots a complete picture of their position relative to the VORTAC station.
Here are some key benefits of VORTAC:
Accuracy: It's highly accurate, especially compared to NDBs, and performs well even at lower altitudes and in poor weather.
Redundancy: The dual-system approach for bearing provides backup and strengthens reliability.
Versatility: It offers both bearing and distance information, crucial for navigation and approach procedures.
Wide Availability: VORTAC stations are found in both civilian and military areas, making them widely accessible.
While GPS technology is increasingly used for navigation, VORTAC remains a vital system, especially for:
Instrument approaches: VORTAC plays a key role in many instrument approaches, guiding pilots accurately and safely onto the runway.
En route navigation: Pilots can use VORTAC stations as waypoints or reference points to navigate through airspace.
Military Operations: TACAN's anti-jamming and security features make it valuable for military navigation.
ILS (Instrument Landing System)
The ILS, or Instrument Landing System, is a precision radio navigation system used in aviation to guide aircraft to a safe landing even in low visibility conditions like fog, heavy rain, or snow. It provides both horizontal and vertical guidance to pilots, allowing them to accurately approach and land on the runway even when they can't see it.
Here's how the ILS works:
1. Localizer: This component transmits radio signals from the side of the runway. The aircraft's receiver detects these signals and compares their strength. If the aircraft is aligned with the runway centreline, the signals will be equal on both sides. If the aircraft is off-centre, the signal will be stronger on one side, guiding the pilot back to the centreline.
2. Glidepath: This component transmits radio signals from a point slightly above the runway threshold. The aircraft's receiver detects these signals and compares their strength. If the aircraft is on the correct descent angle, the signals will be equal. If the aircraft is too high or too low, the signal will be stronger on one side, guiding the pilot to the correct glidepath.
3. Marker Beacons: These are optional components that transmit radio signals at specific points along the approach path. Pilots can use these signals to confirm their position and progress on the approach.
4. Approach Plates and Procedures: Pilots use specific approach plates and procedures for each ILS system. These plates provide detailed information about the frequencies, altitudes, and other parameters for the approach.
Benefits of ILS:
Safety: ILS allows for safe landings in low visibility conditions, significantly reducing the risk of accidents.
Precision: ILS provides highly accurate guidance, ensuring that aircraft land smoothly and on the centreline of the runway.
Efficiency: ILS allows aircraft to land closer together, increasing airport capacity in bad weather.
Limitations of ILS:
Cost: Installing and maintaining an ILS system is expensive.
Availability: Not all airports have ILS systems.
Vulnerability to interference: ILS signals can be interfered with by terrain or other radio signals.
Overall, the ILS is a vital safety system for aviation, allowing pilots to land safely and efficiently even in challenging weather conditions.
